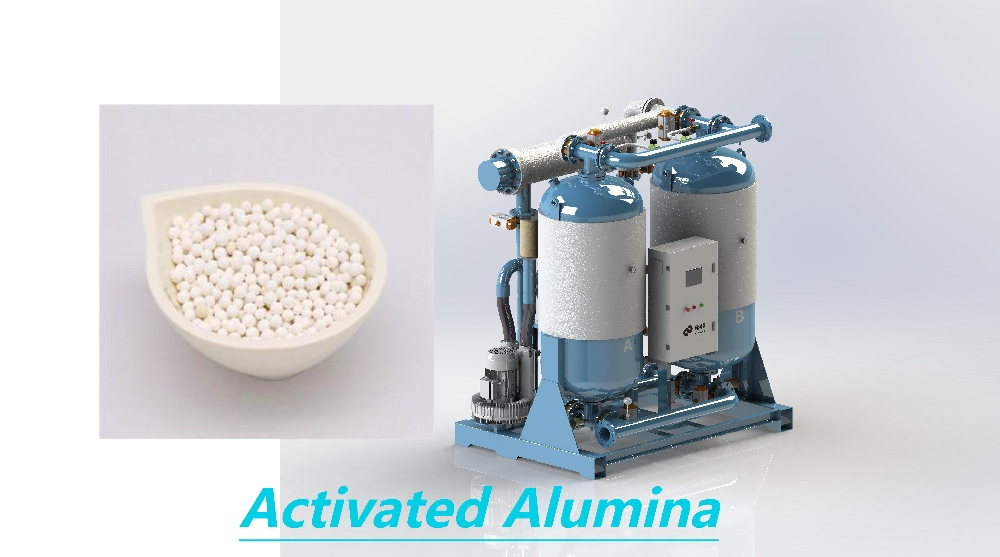

How to Select Activated Alumina for Dryers

In industrial gas and liquid processing, drying safeguards product purity, equipment safety, and process stability. Activated alumina is a high-efficiency, economical, and reliable desiccant. Its performance directly affects a drying system’s operating efficiency and total cost. So, how do you choose the most suitable activated alumina for your dryer?

I. Clarify Your Requirements

Before choosing, define your process needs clearly. These four core items give you a solid basis for communicating with suppliers:

1. What is the process medium?
   Compressed air, industrial nitrogen, natural gas, or a specific organic liquid. Different media determine the desiccant’s selectivity and compatibility.

2. What are the inlet conditions?
   Specify inlet temperature, pressure, and moisture content or dew point. These are the fundamentals for calculating drying load and determining the desiccant quantity.

3. What is the target specification?
   What outlet pressure dew point (PDP) do you need, for example −40 °C or −70 °C. Clear targets are the final yardstick for desiccant performance.

4. What is the operating mode and equipment type?
   Is the unit running continuously or intermittently. What are the regeneration temperature and purge gas source. Understanding the operating mode helps you select products with longer life and lower energy consumption.

II. Understand the Product: Deep Dive on Key Performance Indicators

With many activated alumina options on the market, focus on the indicators that determine performance and service life:

1. High adsorption capacity:
   Higher capacity means more water captured per unit of product, higher efficiency, and more economical bed fill.

2. High crush strength:
   Excellent mechanical strength resists powdering under frequent pressure fluctuations and gas-flow impacts, extending service life and reducing changeout frequency and total cost.

3. Low attrition rate:
   Low wear generates minimal fines, protecting downstream valves, instruments, and equipment while avoiding contamination of the process medium.

4. Proper particle size distribution:
   Well-matched particle sizes deliver optimal mass-transfer kinetics while keeping pressure drop low.

For example, Shanghai Jiuzhou’s activated alumina series includes:

• JZ-K1: suitable for most units requiring PDP around −40 °C and above.

• JZ-K2: higher adsorption performance for lower PDP targets and more stringent gas-quality demands.

• JZ-K3: suited for heatless regenerative dryers, available in multiple grades and particle sizes, covering applications from general industrial air drying to very high-purity requirements.
